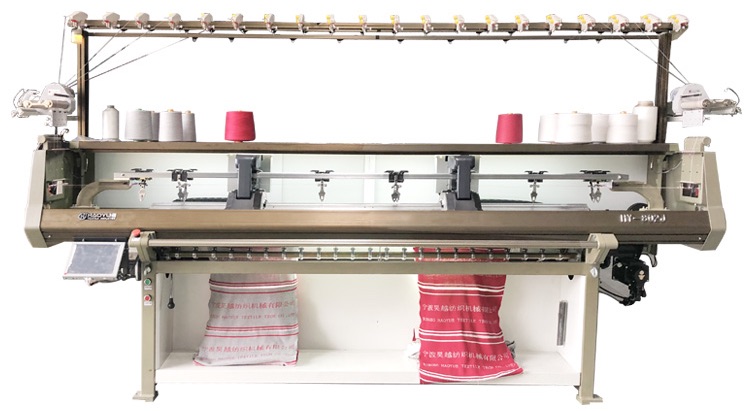

1+1 system Fully jacquard collar knitting machine

Model

HY-421J/HY-521J/HY-601J/HY-681J/HY-801J/HY-602J/HY-682J/HY-802J

HY-421JT/HY-521JT/HY-601JT HY-681JT/HY-801JT/HY-602JT HY-682JT/HY-802JT

Gauge

12G,14G,16G,18G

12G,14G,16G,18G

Knitting width

42, 52, 60,  68, 80, 100Inch

42, 52, 60,  68, 80, 100Inch

Knitting function

Fully jacquard

Fully jacquard with transfer

Knitting system

Single, Double carriage/ Single system 8 needle jack full jacquard selection cams

Single, Double carriage/ Single system 8 needle jack full jacquard selection cams

Needle-bed

segment knife needle bed or common needle bed option available when buying, with 8 sets of solenoid needle selection structure

Racking

Controlled by servo motor racking within 2 inches and with fine adjusting function

Knitting speed

Controlled by servo motor, Maximum 1.4M/S

Stitch density

Controlled by stepping motor, 32 section stitch selectable adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.

Take down roller

Programmed instruction controlled by stepping motor, 32levels selection adjustable range:0-100

Yarn carrier

2 sets of 6 feeders on both side of the 3 feeders rail

Protection

The machine will automatically alarm if yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur also set up the safety auto-lock protect device

Operation display

LCD industrial display, Can display various parameters, USB memory, time counting, visual interface control, maintenance history, easily system update, Express in Chinese or English, etc.

Power

Single-phase 220V,adopt advanced CMOS technology, having memorizing function at power shock stop

N.W.

550-1050KGS

Encoder

Advanced encoder adopted
