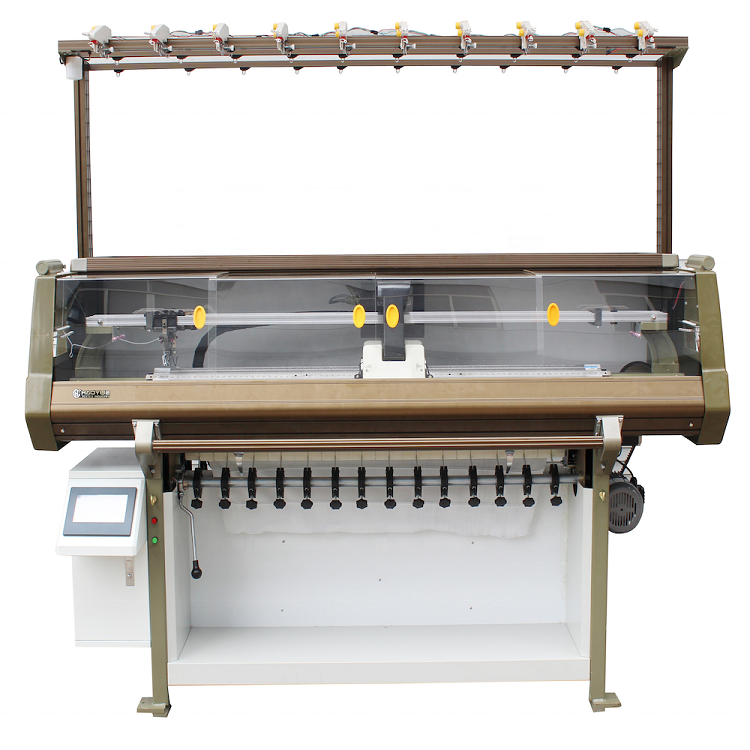

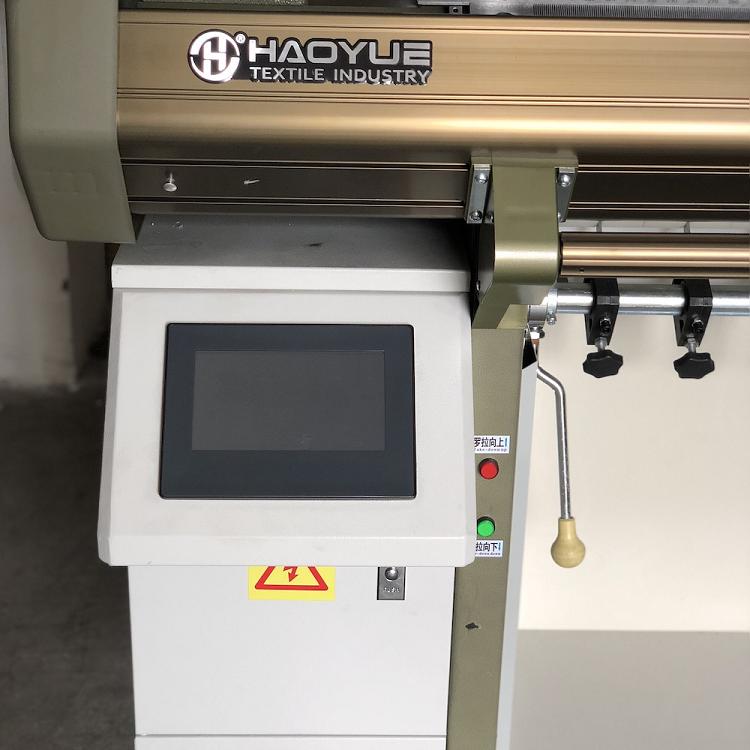

Single carriage Semi jacquard collar knitting machine

Model

HY-421S / HY-521S / HY-601S / HY-681S / HY-801S

HY-602S / HY-682S /

HY-802S

Gauge

12G,14G,16G,18G

12G,14G,16G

Knitting width

42inch  52inch  60inch  68inch  80inch

60inch , 68inch , 80inch

Knitting function

Semi jacquard

Semi jacquard

Knitting system

Single carriage

Double carriage

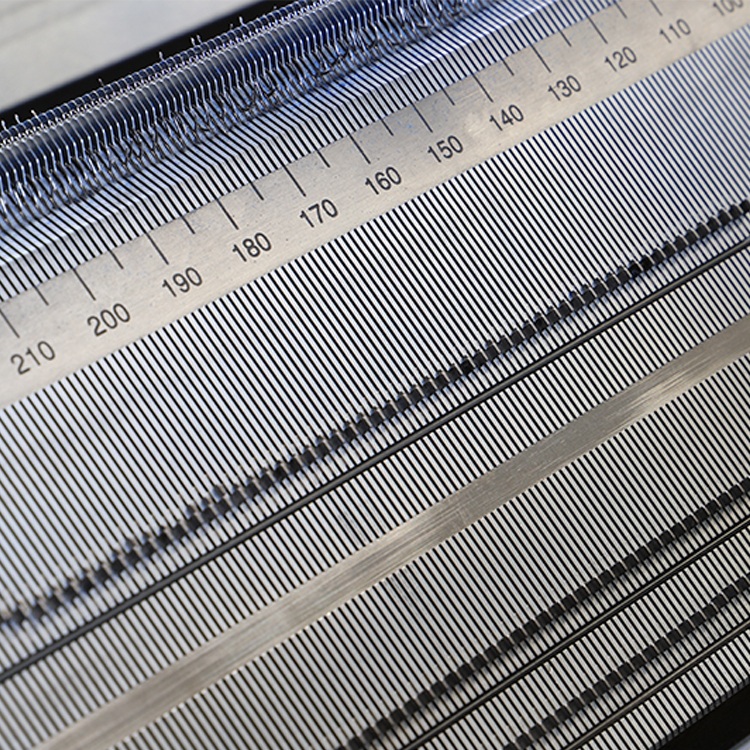

Needle-bed

Wider needles bed, with high and low heel needles, jacks at front and back needle bed

Racking

One needle or half-pin can be shaken at any position

Knitting speed

Maximum 1.4M/S

Stitch density

Controlled by stepping motor,0-99, the stitch of the collar can be accurately controlled

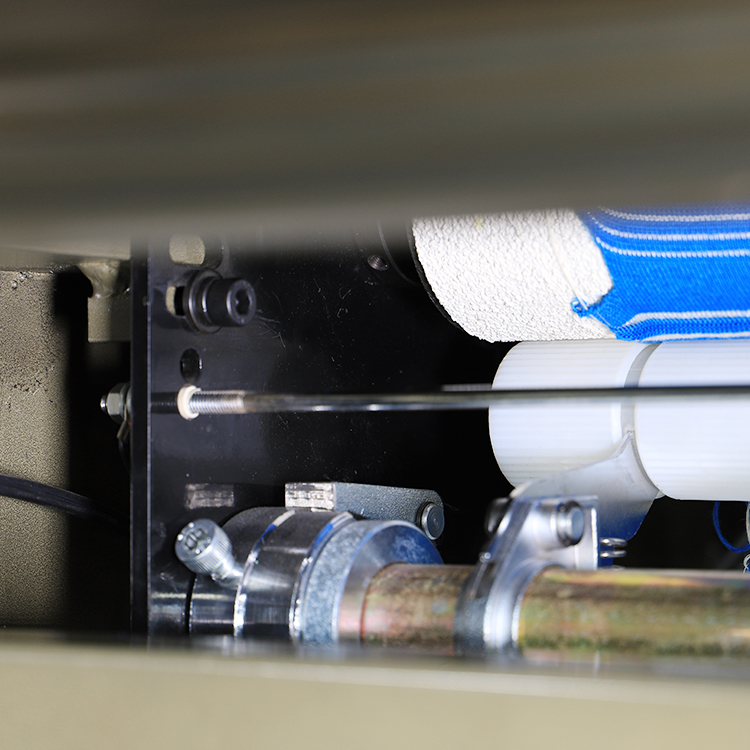

Take down roller

Sub-segment combination rollers, Programmed instruction controlled by stepping motor, two speed options

Yarn carrier

6 colors, two side interchangeable feeders

Protection

The machine will automatically alarm if yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur also set up the safety auto-lock protect device.

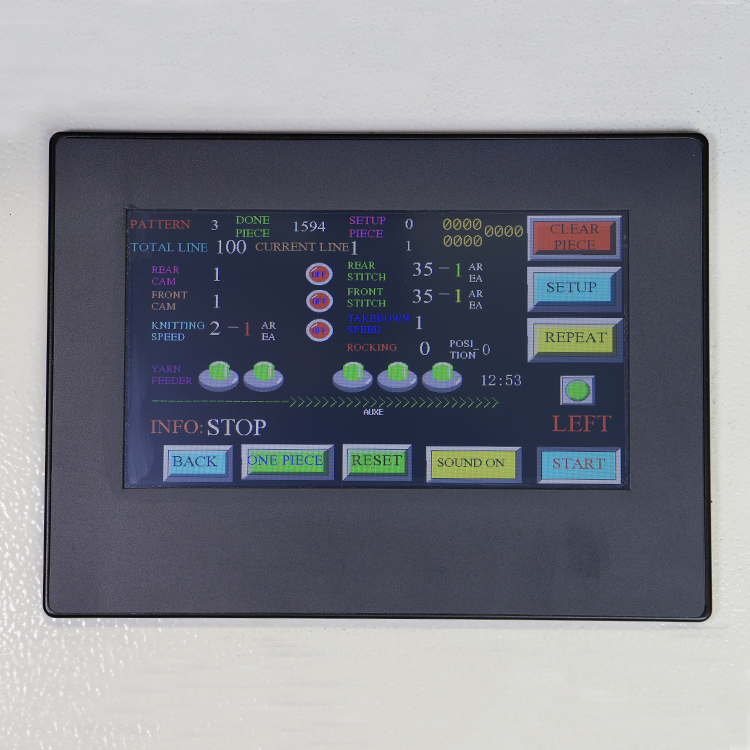

Operation display

LCD industrial display, Can display various parameters, Express in Chinese or English

Power

Single-phase 220V,adopt advanced CMOS technology, having memorizing function at power shock stop

N.W.

450-950KGS

Optional functions

Automatic hook yarn head funcition; Lycra funtion; Yarn storage device; Yarn feeder device
